IES Gringa
Thanks to Marcelo G. Peña
for these pictures and information and a special thank you to Alejandro Capano whose site is well worth visiting.
|
|
More pictures of the Gringa - right - the interior bears little or no resemblance to that of the 2CV - note the floor mounted gearchange
|
|
 |
 |
 |
|
Above and below - the instrument panel which looks the same as that fitted to the IES Super America
|
 |
 |
|

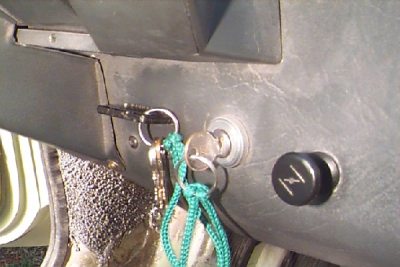

Below left and below right - the anti-theft device - a card that must be inserted before the engine can be started
|
 |
 |
|

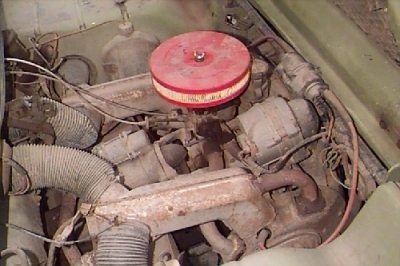

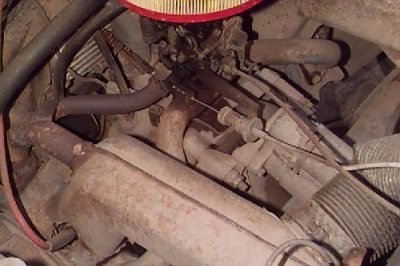

Below left and below right - a familiar engine in an unfamiliar location
|
 |
 |
 |
 |
|

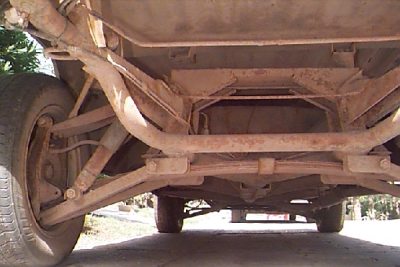

Above and below - close ups of the rear suspension showing the wishbones and transverse leaf spring
|

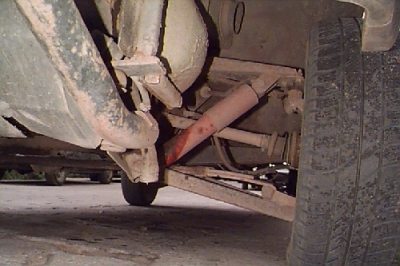

Above and below - close ups of the front suspension showing the wishbones and transverse leaf spring
|
 |
 |
 |
 |
|
Above - close up of rear suspension wishbone

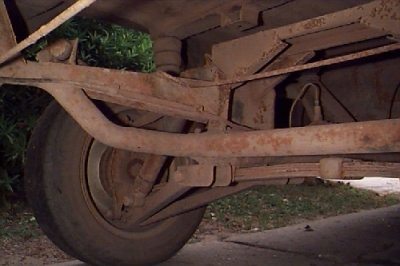

Below - view of rear suspension showing transverse leaf spring
|

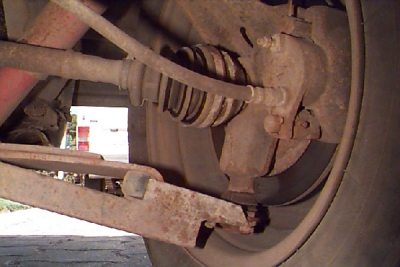

Above and below - close up of front suspension showing outboard disc brake
|
 |
 |
 |
|

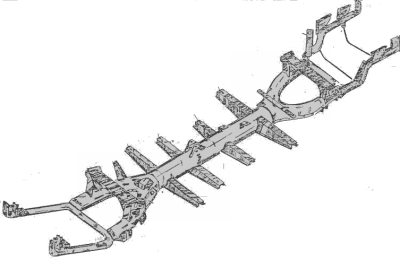

Left the IES Super América, Gringo and Gringa chassis - compare this with the French 2CV chassis below
|
 |
|
|
|
2CV AZ - AZL -AZU
[1960 - 1962]
|
2CV AZL - AZU
[1962 - 1969]
|
3CV & IES América
[1970 - 1982 ]
|
IES Super América
[1982 - 1990]
|
|
Engine
|
|
|
|
|
|
Number of cylinders
|
2
|
2
|
2
|
2
|
|
Cubic capacity
|
375cm3 (AZ/AZU)
425cm3 (AZL)
|
425cm3
|
602cm3
|
602cm3
|
|
Compression ratio
|
6,2 : 1 (AZ/AZU)
7,2 : 1 (AZL)
|
7 : 1
|
8,5 : 1
|
8,5 : 1
|
|
Power output
|
9 bhp @ 3 500 rpm (AZ/AZU)
12,5 bhp @ 4 200 rpm (AZL)
|
12,5 bhp @4 200 rpm
|
31,5 bhp @ 6 700 rpm
|
32 bhp @ 5 750 rpm
|
|
Transmission
|
Front wheel drive via 4 speed gearbox
|
Front wheel drive via 4 speed gearbox
|
Front wheel drive via 4 speed gearbox
|
Front wheel drive via 4 speed gearbox
|
|
Suspension
|
Interconnected front to rear emplying horizontal coil springs and friction dampers
|
Interconnected front to rear emplying horizontal coil springs and hydraulic dampers
|
Interconnected front to rear emplying horizontal coil springs and hydraulic dampers
|
Front and rear wishbones with transverse leaf springs and hydraulic dampers
|
|
Brakes
|
Drums - front mounted inboard
|
Drums - front mounted inboard
|
Drums - front mounted inboard
|
Front discs mounted outboard
Rear drums
|
|
Dimensions
|
|
|
|
|
|
Length
|
3,67
|
3,78
|
3,78
|
3,81
|
|
Width
|
1,46
|
1,48
|
1,48
|
1,48
|
|
Height
|
1,60
|
1,60
|
1,60
|
1,68
|
|
Performance
|
|
|
|
|
|
Top speed
|
72 kph
|
90 kph
|
112
|
115
|
|
Fuel consumption
|
4,2 l/100km
|
5,6 l/100km
|
-
|
5,5l/100km
|
 |
|
