CITROEN GS

1220 CLUB

Worthwhile Improvement

Much better now

It can be claimed with some validity that the GS has rivals which do almost as much without resorting to anything like the same complication. But none of them do quite as much; and the increase in engine size has done the GS a lot of good. In its original form, it was just too much of a French taxation special; now it has sufficient performance not to need full throttle to maintain station in a traffic stream.
Judging by our results, it has become more economical too, and we would not be surprised if engine life had been improved as an extra bonus. Citroen have worked hard through the last couple of years introducing some sensible changes - of which the new interior door handles are a good example. The GS remains average driver to accept without some re-adjustment-but one suspects that is all part of its appeal for its owners. The rest of its appeal, as a combination of comfort and roadworthiness, is obvious.

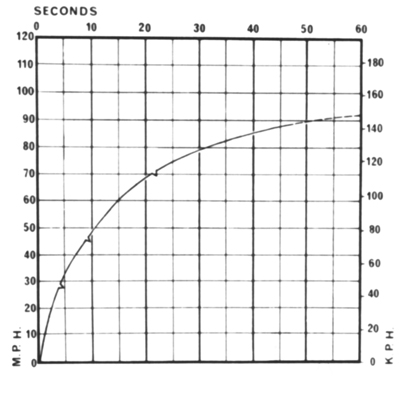

ACCELERATION

Standing 1/4 mile - 20.1 sec 68 mph
Standing Kilometre - 37.5 sec 84 mph
Test distance 752 miles
Mileage recorder accurate
SPEED MPH TRUE TIME IN SECS
INDICATED
30 4.4
31
40 7.0
41
50 10.5
51
60 14.9
61
70 21.1
72
80 31.4
82
90 51.9
92
GEAR RATIOS AND TIME IN SEC
mph
Top
3rd
2nd

(4.62)
(6.29)
(9.80)
10-30
-
8.0
5.0
20-40
12.2
7.5
5.0
30-50
11.4
7.6
-
40-60
12.1
8.3
-
50-70
14.3
10.7
-
60-80
17.8
-
-
70-90
29.5
-
-

PERFORMANCE

MAXIMUM SPEEDS
Gear
mph
kph
rpm
Top (mean)
94
151
6,160
Top (best)
96
154
6,300
3rd
73
117
6,500
2nd
47
76
6,500
1st
29
47
6,500

BRAKES

FADE


(from 70 mph in neutral)
Pedal load for 0.5g stops in lb
1
30
6
35-45
2
35
7
35-40
3
40
8
35-40
4
40-45
9
40-45
5
40-45
10
35-40
RESPONSE

(from 30 mph in neutral)
Load
g
Distance
10lb
0.1
301 ft
20lb
0.35
86 ft
30lb
0.55
55 ft
40lb
0.75
40 ft
50lb
0.90
33 ft
Handbrake
0.30
100 ft
Max. gradient
1 in 3

COMPARISONS

MAXIMUM SPEED MPH
0-60 MPH, SEC
Simca 1100 Special (£1,192)
96
Renault 12 TS 12.9
Citroen GS 1220 Club (£1,315)
94
Simca 1100 Special 13.2
Renault 12 TS (£1,199)
94
Citroen GS 1220 Club 14.9
Fiat 128 4-door (£991)
86
Fiat 128 4-door 16.3
Peugeot 204 (£1,198)
84
Peugeot 204 17.4




STANDING 1/4 MILE, SEC OVERALL MPG
Simca 1100 Special 18.9 Renault 12 TS 30.0
Renault 12 TS 19.3 Fiat 128 4-door 29.2
Fiat 128 4-door 19.8 Peugeot 204 28.2
Citroen GS 1220 Club 20.1 Citroen GS 1220 Club 24.8
Peugeot 204 20.3 Simca 1100 Special 24.3




GEARING


CONSUMPTION


(with 145-15 in tyres)
FUEL (At constant speed - mpg)
Top
15.25 mph per 1,000 rpm
30 mph 49.3
3rd
11.2 mph per 1,000 rpm
40 mph 43.4
2nd
7.2 mph per 1,000 rpm
50 mph 37.7
1st
4.5 mph per 1,000 rpm
60 mph 35.1


70 mph 29.8
TEST CONDITIONS
80 mph 24.7
Weather Overcast Wind: Calm 90 mph 20.6
Temperature 2 deg C (36 deg F) Typical mpg 27 (10.5 litres/100 km)
Barometer 30.10 in. hg Calculated (DIN) mpg 2.17 (10.4 litres/100 km)
Humidity 78 per cent Overall mpg 24.8 (11.4 litres/100 km)
Surfaces Dry concrete and asphalt OIL


Consumption (SAE 20W/50) Negligible
WEIGHT


Kerb weight (with oil, water and half full fuel tank) 16.8 cwt (1,886 lb - 855 kg)

Distribution, per cent F 66.3, R 33.7

Laden as tested 21.2 cwt (2,372 lb - 1,076 kg)





TURNING CIRCLES


Between kerbs L 32 ft 0 in; R 34 ft 2 in Steering wheel turns lock to lock 3.7
Between walls L 32 ft 7 in; R 34 ft 9 in

Figures taken at 3,700 miles by our own staff at the Motor Industry Research Association proving ground at Nuneaton.

SPECIFICATION

FRONT ENGINE, FRONT-WHEEL DRIVE
ENGINE
Cylinders 4, horizontally opposed
Main bearings 3
Cooling system Air; ducted fan
Bore 77.0 mm (3.03 in.)
Stroke 65.5 mm (2.58 in.)
Displacement 1,220 cc (74.4 cu. in.)
Valve gear Single overhead camshaft per bank, cogged belt driven
Compression ratio 9.0 to 1. Mon. octane rating: 98 RM
Carburettors Solex 28 CICM twin-choke
Fuel pump Mechanical
Oil filter Full flow, replaceable cartridge type
Max. power 60 bhp (DIN) at 6,500 rpm
Max. torque 64 lb. ft.(DIN) at 3,250 rpm
TRANSMISSION
Clutch Diaphragm-spring, 7.06 in. dia.
Gearbox 4 speed all syncromesh
Gear ratios Top 1.12
Third 1.52
Second 2.38
First 3.82
Reverse 4.18
Final drive Spiral bevel, ratio 4.125 to 1
CHASSIS and BODY
Construction Integral with steel body
SUSPENSION
Front Independent, double wishbones, hydropneumatic struts interconnected with rear
Rear Independent, trailing arms, hydropneumatic struts interconnected with front
STEERING
Type Rack and pinion
Wheel dia. 14.7 in.
BRAKES
Make and type Citroen dis front and rear
Servo Citroen
Dimensions F 10.63 in. dia.
R 6.93 in. dia.
Swept area F 232 sq. in
R 118 sq. in.
Total 350 sq. in.
WHEELS
Type Ventilated pressed steel disc, 3 stud fixing, 4.5 in. rim
Tyres - make Michelin
Tyres - type ZX Radial ply tubeless
Tyres - size 145-15 in.
EQUIPMENT
Battery 12 volt, 35 Ah
Alternator Paris-Rhone, 41 amp a.c.
Headlamps SEV Marchal 80/90 watt (total)
Reversing lamp Standard
Electric fuses 8
Screen wipers 2-speed
Screen washer Standard, electric
Interior heater Standard, air blending type
Heated backlight Extra
Safety belts Extra, mounting points standard
Interior trim Nylon seats, pvc headlining
Floor covering Carpet
Jack Screw pillar type
Jacking points 2 each side under sills
Windscreen Toughened
Underbody protection Tectyl overall
MAINTENANCE
Fuel tank 9.5 imp. gallons (43 litres)
Engine sump 7.5 pints (3.5 litres)
SAE 20W/50 Change oil every 3,000 miles. Change filter every 6,000 miles
Gearbox and final drive 3 pints SAW 80EP Change oil every 12,000 miles
Grease No points
Valve clearance Inlet .008 in. (cold)
Exhaust .008 in. (cold)
Contact breaker .012 in. gap 57 deg. dwell
Ignition timing 10 deg. BTDC (static)
33 deg. BTDC
(stroboscopic at 2,500 rpm)
Spark plug Type SEV Marchal 34HS. Gap .024-.028 in.
Tyre pressure F 26 psi R 28 psi (all conditions)
Max. payload 915 lb (415 kg)
Service Interval
3,000
6,000
12,000
Time allowed
2 hr
2 hr 45 m
3 hr
Cost @ £3 per hour
£6.00
£7.35
£9.00
Oil (7 pints)
£0.90
£0.90
£0.90
Oil filter
-
£0.94
£0.94
Breather filter
-
-
-
Air filter
-
-
-
Contact breaker points
-
£2.10
-
Sparking plugs (clean)
-
£0.70
-
Total cost
£6.90
£11.99
£10.84
Routine replacements
Time
Cost
Spares
Total:
Brake pads (front & rear)
1 hr 15 m
£3.75
£10.94
£14.69
Exhaust system
1 hr 15 m
£3.75
£35.50
£39.25
Clutch
8 hr 30 m
£25.50
£9.50*
£35.00
Dampers - front
30 m
£1.50
£9.50
£11.00
Dampers - rear
30 m
£1.50
£9.50
£11.00
Replace drive shaft
1 hr 15 m
£3.75
£47.22
£50.97
Generator
30 m
£1.50
£24.15
£25.65
Starter
45 m
£2.25
£27.50
£29.75
* Replacement disc only
MANUFACTURER:

S. A. Andrť CitroŽn,
133 Quai Andrť CitroŽn,
Paris 15e

UK CONCESSIONAIRES:

CitroŽn Cars Ltd.,
Trading Estate,
Slough,
Bucks.

PRICES:

Basic £1,087.00
Purchase Tax £228.02
Total (in G.B.) £1,315.02
Seat Belts (inertia reel) £19.33
Licence £25.00
Delivery charge (London) £8.50
Number plates £5.00
Total on the Road (exc. insurance) £1,372.85
Insurance Group 4
EXTRAS (inc. P.T.)
Heated rear window* £21.75
Head rests £19.94
Metallic paint* £14.50

* Fitted to test car

TOTAL AS TESTED ON THE ROAD £1,409.10


© 1973 Autocar/ 2011 CitroŽnŽt
